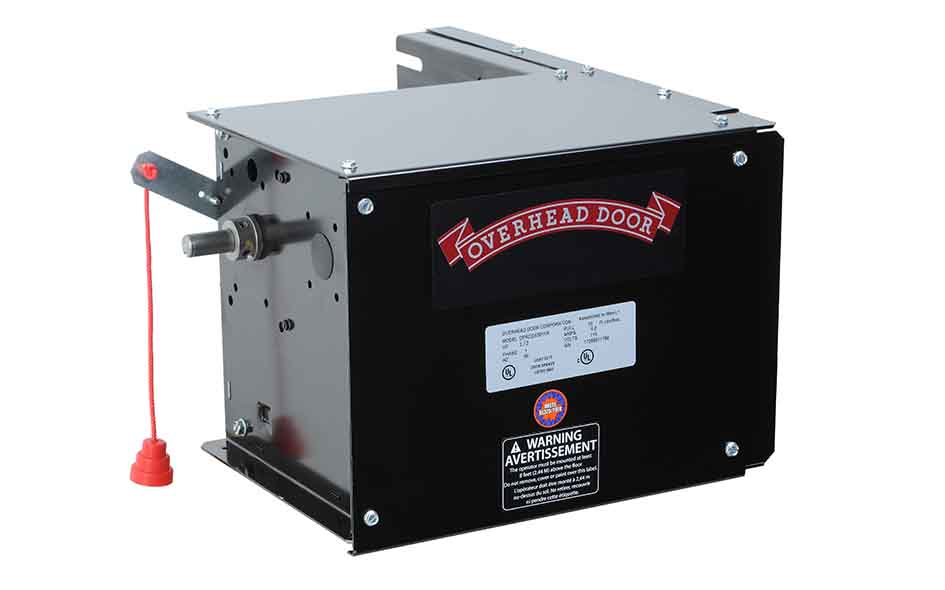

The CDX® is a UL 325 listed light-duty operator for rolling counter doors and counter fire doors.
It’s used in schools, hospitals, cafeterias, concessions, factories and retail, wherever a counter shutter is opened and closed daily.
The CDX® is a UL 325 listed light-duty operator for rolling counter doors and counter fire doors.
It’s used in schools, hospitals, cafeterias, concessions, factories and retail, wherever a counter shutter is opened and closed daily.
| Product Specifications | |
|---|---|
| Mounting | Front of hood (chain/sprocket coupling to door). Includes built-in guarding that prevents access to drive chain allowing CDX to be mounted less than 8 ft off of floor. |
| Motor | 1/2 horsepower, 115V AC single phase motor with high start torque, intermittent-duty, NEMA 42 frame open drip-proof construction, instant reversing with automatic reset thermal overload |
| Drive reduction | Helical gear primary reduction and hardened bevel gear secondary reduction |
| Power train | Oil impregnated bushing to ensure long life |
| Cycles per hour | Operator tested and approved by UL for 5 cycles per hour at rated load of 70 ft-lbs/sec |
| Display | 16-character LCD display provides easy-to-read set-up and diagnostics with backlight for low-light conditions |
| Limit system | Adjustable linear type; remains synchronized with door during release operation |
| Cycle counter | Displays total cycles logged over the operator’s lifetime to support warranty and service functions |
| Independent timers | Automatic maximum run timer stops the close function if present run time is exceeded, allowing for inspection |
| Control system | On-board Open, Close and Stop buttons make set-up and testing simple, saving time during installation |
| Control buttons | Calibration Mode/Run Mode, Backlight, Scroll Up/Down, Set/Clear |
| Warranty | Two year or 20,000 cycle limited warranty |
| Options | |
|---|---|
| Models | Counter Door Counter Fire Door |
| Radio hookups | Option available for fast, simple radio frequency connectivity to enable remote door operation |
| Hand crank | Optional on standard counter door; comes with electrical interlock |
| Governor | Option available on Counter Fire Door only. Centrifugal drum type governor built into operator to control drop speed without disconnection from door |
| Release | Option available on Counter Fire Door only. Spring-loaded for automatic release of door by optional fuse link, Fire Sentinel® or similar fire detection system |
