Mechanical Pit Leveler

M68R & M78R

This mechanical pit leveler is designed for safe installation and dependable daily use. Height adjusters work from the dock floor, so no one works under the leveler, and no rear shimming or welding is needed.

C-channel deck beams, a beveled lip and a textured powder coat meet ANSI MH30.1-2022.

Considering the Mechanical Pit Leveler for your facility? We supply, install and service loading dock equipment for warehouses and distribution sites across New York City and Long Island.

Installer Friendly

Safety Focus

  • Installers are never under the pit
  • Minimal bumps or gaps on deck/lip reduce trip hazards for workers
  • Proprietary powder coat formulation on deck and lip surfaces is textured to provide enhanced traction and non-slip protection even when wet

Durability, Low Maintenance, Low Downtime

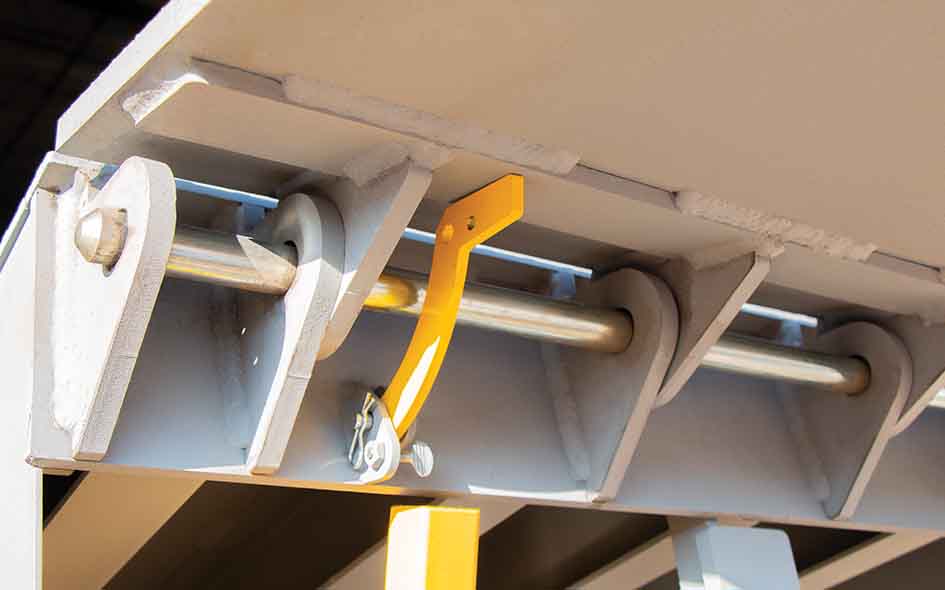

  • Heavy duty multi-lug construction of the lip hinge. The design helps shed debris instead of trapping/grinding it between the lip/deck junction that can cause fatigue and maintenance issues. The lug construction also allows for easy lubrication of the hinge.
  • Deck hinge is fully supported across the entire width of the deck, which spreads the load across the width of the deck instead of concentrating the load on just a few hinge points
  • Durable textured powder coat provides an extremely durable finish, better corrosion protection and adhesion compared to wet paint
  • Complies with ANSI MH30.1-2022 that includes rigorous load testing requirements

Environmentally Friendly

  • Our powder coat process has fewer Volatile Organic Compounds (VOCs) and solvents compared to paint
  • Overspray is recycled which reduces waste disposal issues compared to a traditional paint process
    The US Environmental Protection Agency (EPA) recommends powder coatings as a sustainable coating option

Installation and Serviceability

  • Open base frame creates generous space for service along the full length of the leveler, including the rear which is the most difficult area to reach for cleaning and a common collection point for debris
  • Leveler main springs are tightened/loosened with one adjustment point conveniently located on lift arm
  • Field serviceable with easy to reach adjuster for main spring
  • Serviceable lip and hinge pin can be removed without breaking welds
  • Maintenance brace is easy to reach under the leveler and is tethered so it never gets lost. Brace holds leveler up by the deck to allow lip maintenance
  • Grease fittings to lubricate deck hinge for smooth operation
  • Leveler ships with four forklift lifting loops bolted to deck, allowing leveler to be lifted from the front or rear for easy transport and placement in the pit



MODEL M68R



WEIGHT CAPACITY DIMENSION (NOMINAL)
35,000 and 45,000 lbs. 6′ W x 8′ L
BUMPERS STANDARD OPTIONAL
Laminated Bumpers
410-14 W1
✓
Laminated Upgraded Bumpers
410-14 W2, 412-14 W1/W2, 610-14 W1/W2,
V420-11 W1/W2, V620-11 W1/W2, V624-11 W1/W2
✓
Steel Face Bumpers
410-14 SF W1/W2, 610-14 SF W1/W2
✓
CONTROL
Hold Down A/R ✓
Working Range 12″ Above/Below Dock ✓
FINISH
Gray Powder Coat ✓
LIP
16″ Lip ✓
Lip Keepers ✓
Lip Bevel ✓
SAFETY
Safety Legs ✓
Maintenance Brace ✓
Safety Tread on Deck and Lip ✓
Toe Guards: Working Range ✓
Toe Guards: Full Operating Range ✓
TRANSPORT
Reinforced Lifting Bolt Holes in Deck (4) ✓
Steel Lifting Loops (Bolt to Deck) (4) ✓
WEATHER SEALS
Weather Seal: Brush ✓
Weather Seal: Neoprene ✓
Chain Hole Seal ✓





1-Year Limited Warranty; 2-Year Limited Warranty when Overhead Door™ brand door and Mechanical Pit Leveler purchased together.
